STEELMATE I880 TrackMate Bluetooth 2 Way Car Tracker GPS System LED Visual Indication Compatible with Most of Smartphones

STEELMATE I880 TrackMate Bluetooth 2 Way Car Tracker GPS System LED Visual Indication Compatible with Most of Smartphones
  • Продавецwww.miamidolphinsvsatlantafalcons.us
  • Список ценUS $21.99piece
  • Продажная ценаUS $21.99piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,8 (789)

Oписание продукта

item pictures





1_4_2_3_5_7_8_9_10_111314

highlights

1. Manually tracking via SMS or automatically location update via SMS
2. Get Google map link for current location by SMS request
3. Real-time online tracking in FMS platform via GPRS
4. Update position online via time interval, distance, angle and ACC ratio
5. SOS alarm (available to preset 3 SOS number)
6. External power cut alarm and low battery alarm
7. Engine On/Off alarm, engine on hours report
8. Position logging capacity up to 7,000+ waypoints if no GPRS signal
9. Available to set different alarm notification ways, such as via SMS, call or email
10. Synchronous record vehicle mileage
11. Available to send mileage alarm to remind vehicle maintenance
12. Automatically stop vehicle or activate buzzer/siren when Geo-fence, speed alarm or any other alarm triggerGPRS

item description



1234


Overview:gps tracker car

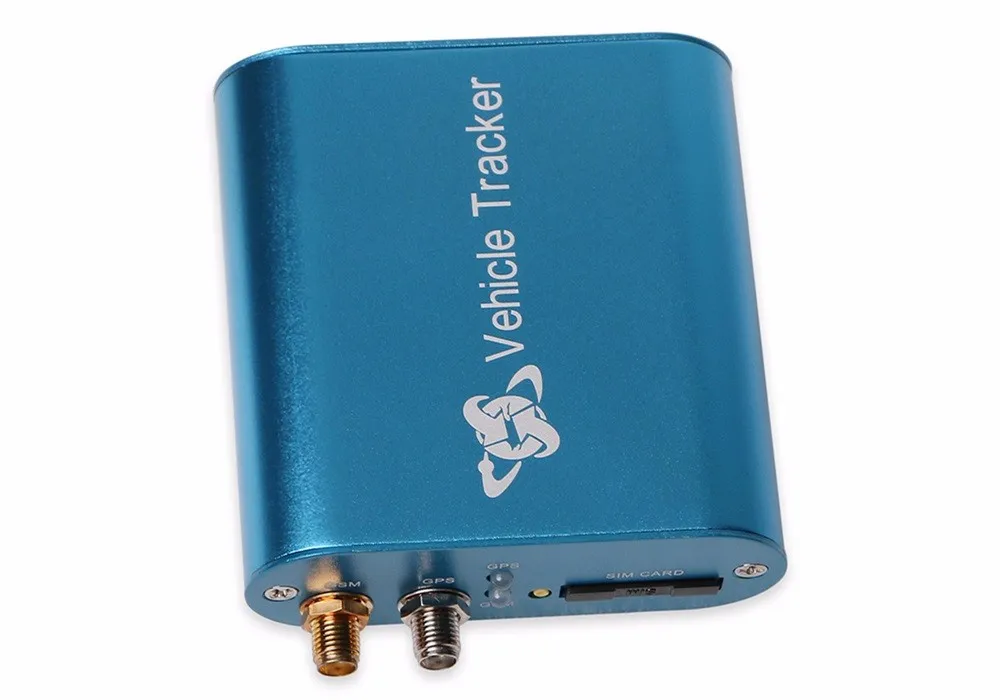

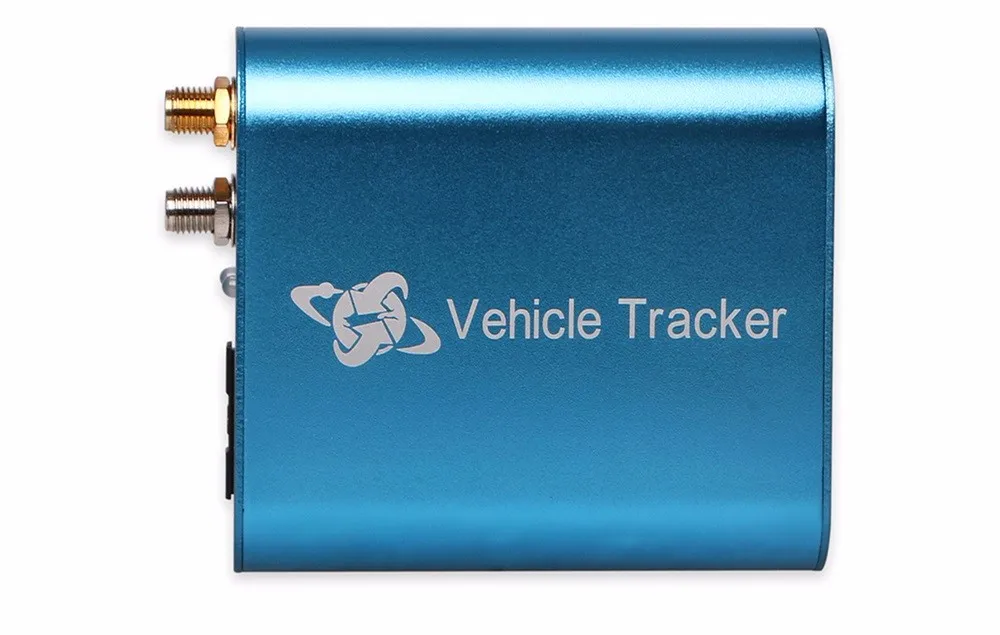

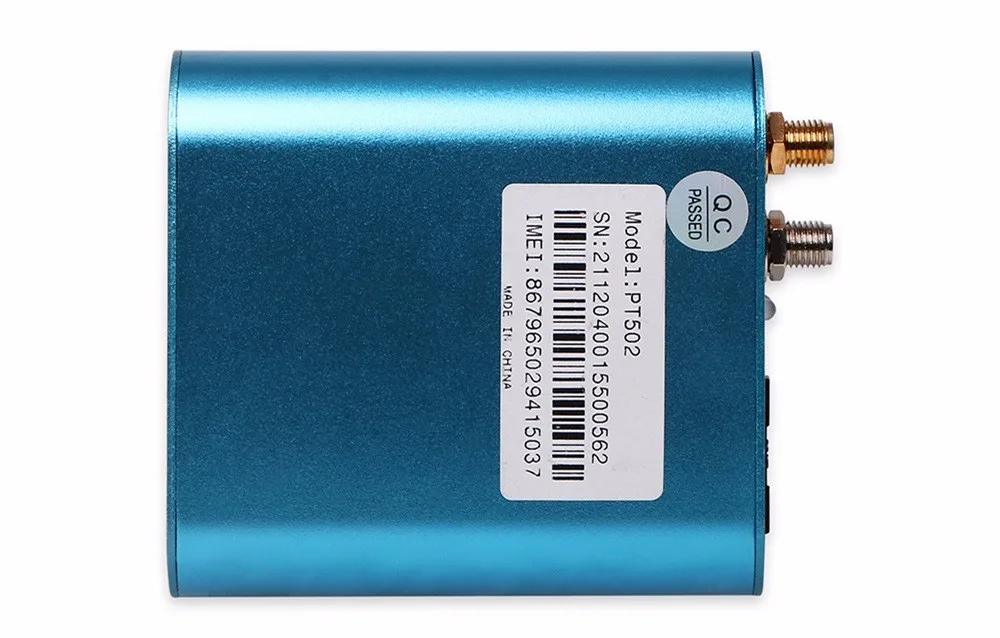

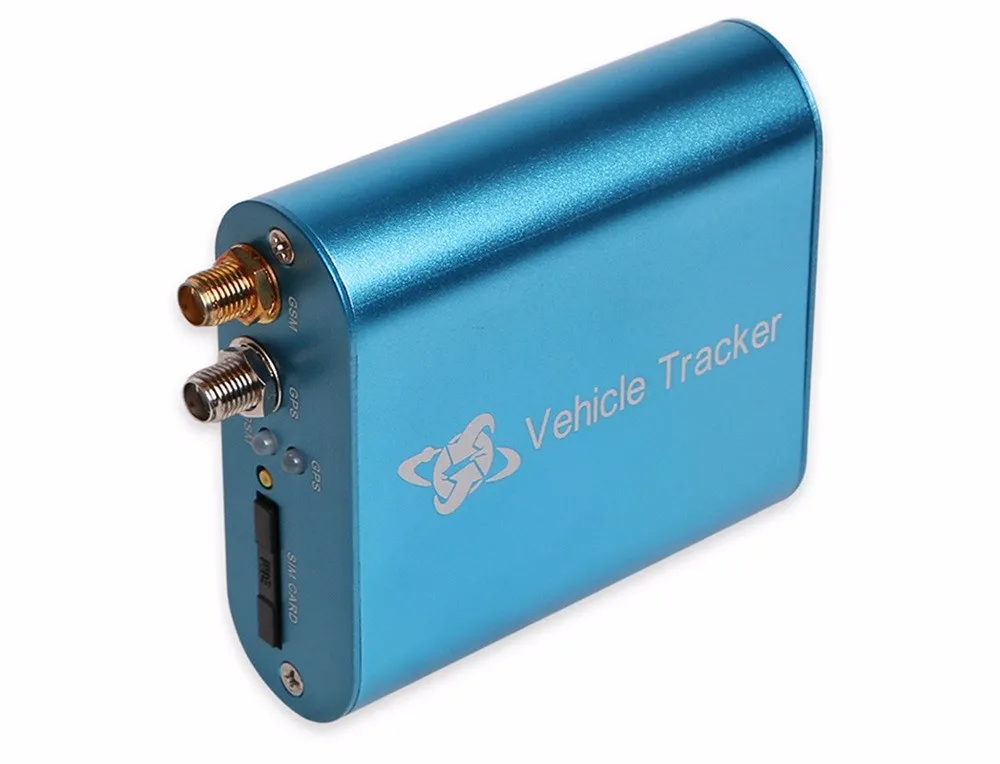

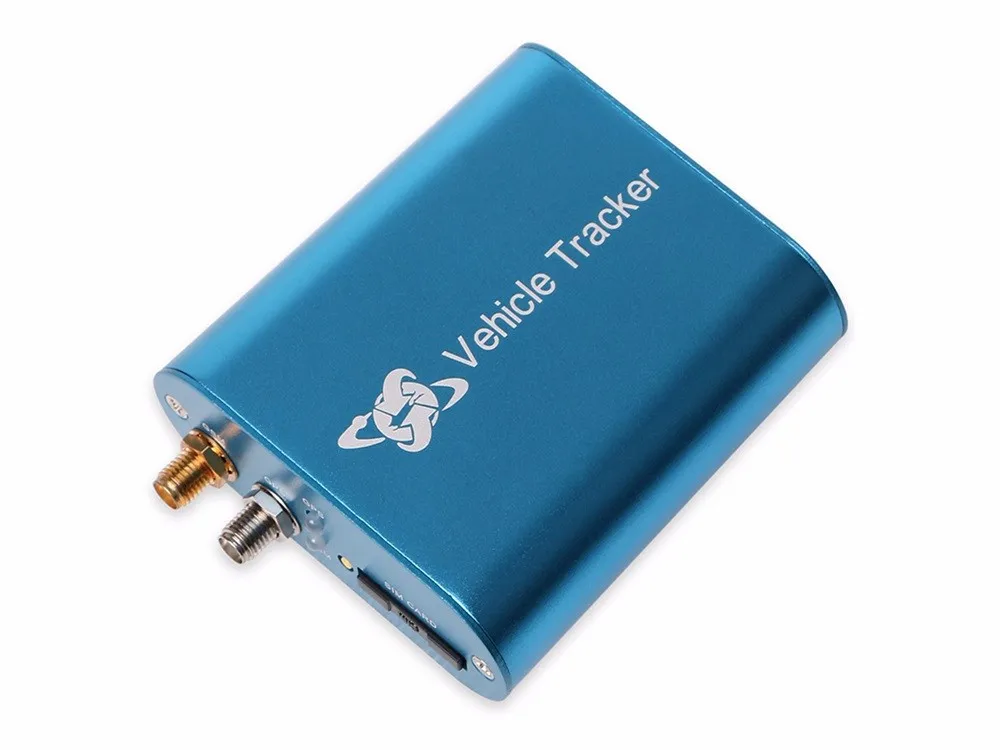

PT502 is a GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GPRS modules, PT502 has good sensitivity and stable performance. Especially, PT502 is well designed to work with FMS, which is suitable for a company to establish their own tracking platform to provide real-time tracking service to their customers or manage their fleets.mini gps locator


Porduct Structure:
structure

Application:

This tracker can be used for fleet management, vehicle rental tracking, taxi management, transportation and
vehicle Insurance etc.


Features:gps tracer

* Manually tracking via SMS or automatically location update via SMS
* Get Google map link for current location by SMS request
* Real-time online tracking in FMS platform via GPRS
* Update position online via time interval, distance, angle and ACC ratio
* SOS alarm (available to preset 3 SOS number)
* External power cut alarm and low battery alarm
* Speed alarm, Geo-fence alarm,
* Stop Vehicle remotely via relay (Stop Engine) (Optional)
* Engine On/Off alarm, engine on hours report
* Position logging capacity up to 7,000+ waypoints if no GPRS signal
* Available to set different alarm notification ways, such as via SMS, call or email
* Synchronous record vehicle mileage
* Available to send mileage alarm to remind vehicle maintenance
* Automatically stop vehicle or activate buzzer/siren when Geo-fence, speed alarm or any other alarm trigger
I/O: 2 digital inputs, 1 negative and 1 positive triggering; 1 outputs.
* Analog Input: 1*10bits resolution analog inputsGPS Tracker



Specification:gps locator

Weight: 0.13KG
Dimensions: 74(L)x 70(W) x 24(H) mm
Input Voltage: DC 9V~36V/1.5A
Back-up Battery: 600mAh/3.7v
Power Consumption: 50mA standby current
Operating Temperature Range: -10°C to +60°C
Storage Temperature Range: -20°C to +70°C
* Humidity: Up to 75% non-condensing
Back-up Battery work time: 8~24 hours depends on preset report interval
GSM Frequency: GSM 850/900/1800/1900MHz
GPRS Multi-slot: Class 8(4Rx, 1Tx, 5 slot Max.)
* Support all 4 coding schemes(CS-1, CS-2, CS-3 and CS-4)
·Maximum download speed is 85.6kbps
·Maximum upload speed is 21.4kbps
* GPS Chip: SiRF Star III
GPS Sensitivity: -159dBmGPS Tracker
GPS Channels: 4 channels 20 parallel
Cold Start: 35 sec
Warm Start: 35 sec
Hot Start: 1 sec
Positioning Accuracy: 10meters at 2D RMS
GPS Antenna: External
GSM Antenna: External
Microphone: None
Speaker: None
LED: 3 LED lights to show GPS,GSM and Power
Memory: Save 7,000 waypoints
Motion sensor: None
I/O: 2 digital inputs, 1 negative and 1 positive triggering; 1 outputs. 1 10 bits
resolution analog inputs
Certificate: CE,FCC,RoHS


Installation and Operation:

Note:
1. When test tracker in office, please charge the tracker via 12V external power charger for 3 hours at
least before following below steps, once you connect the tracker power wire (red/black) to external
power supply wire directly, it is in charging.
2. The SIM card must support GPRS service, support calling and SMS service, can display caller’s ID.
It is a GSM card not CDMA card. And please disable the SIM card PIN code.
1). Install the SIM card
Press the yellow button to eject the SIM card Holder, Push it back after SIM card inserted.
A
2). Connection
Basic connection as the following table is NEEDED:
a. Connect the GSM Antenna
b. Connect the GPS Antenna, put the GPS antenna black side upside face the sky
c. Connect the wires to tracker, and also connect red wire to vehicle battery (+), black wire to vehicle battery (-).
3). Turn on the tracker
A1

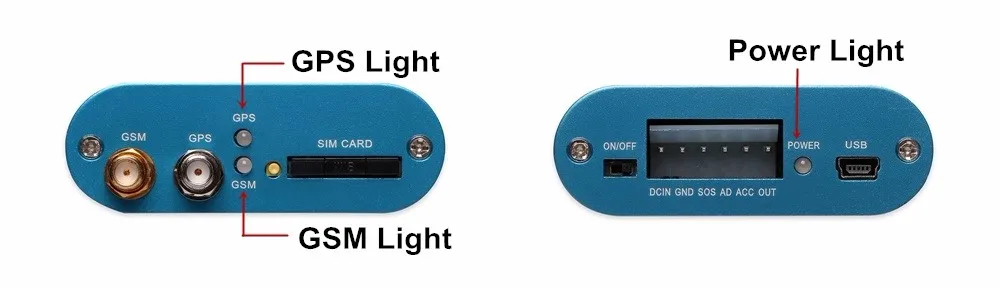

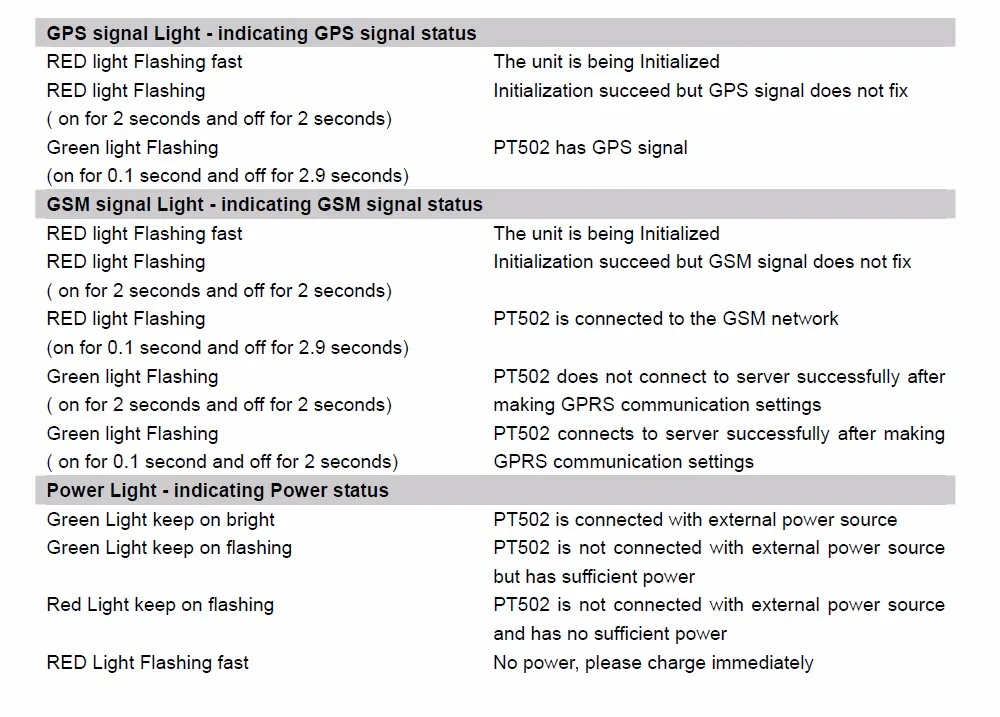

After turn on the tracker, please refer to the signal light functionality.
A2A3


software display

About web tracking software:gps

Web tracking platform:  demo.livegts.com GSM Tracker
Demo Account: Demo , Password:demo707GPRS
Note:This website is for demonstration only.(not for actual use). When you order this product, please contact us , we will offer you a new valid account to track.Car Locator
This platform is USD18.00/pc each year.GPS Tracker
web demo

About ANDROID APP Tracking:GPS Tracker

The device supports APP--MapMyPal online tracking, now it just supports Android operating system.GPS Tracker

packing list

1 * PT502 Main Unit

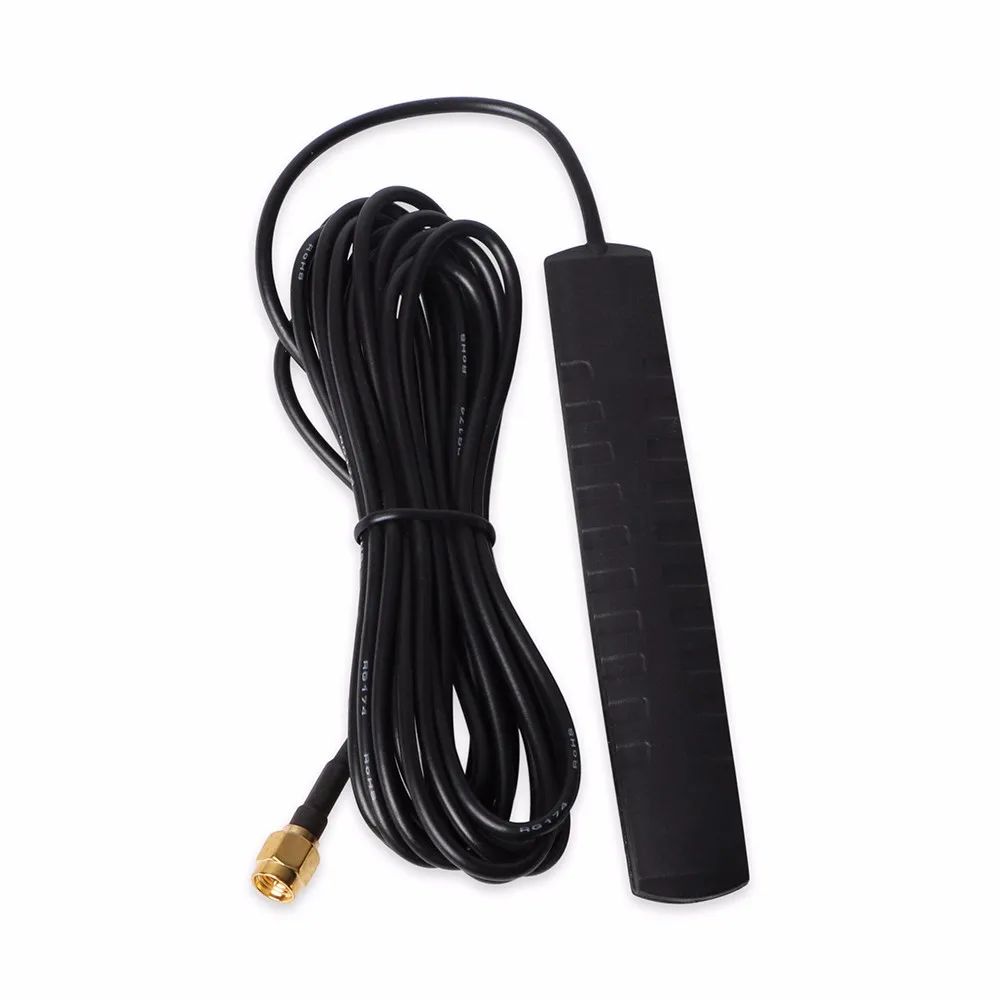

1 * GPS Antenna
1 * GSM Antenna
1 * Plug-in Power Wires
(No SIM Card and SD Card Included)
